33100 series tapered roller bearings

As a famous enterprise in Shandong Province, Shandong Changtian Bearing Co.,Ltd founded in 2016, is a set of bearing design, industrial production, marketing and trade in one of the Department of industry and trade enterprise.With the advanced production equipment strong technical force, complete measurement and detection means, it can effectively guarantee the quality of products.

Category：

Tapered roller bearing

Key words：

Tapered roller bearing

+86-17563566747

lily@ltqzbearing.com

E-mail

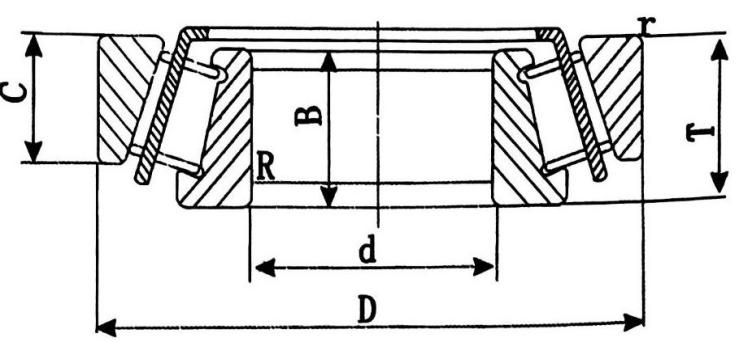

Structure drawing

Product parameter

序号 NO.	轴承型号 Bearing number		外形尺寸（mm）Dimension							额定动负荷Rate dynamic load Cr(Kn)	额定静负荷 Rate static load Cor(Kn)	重量 Weight(Kg)
序号 NO.	新型号 New Model	原型号 Old Model	d	D	B	C	T	Rmin	rmin	额定动负荷Rate dynamic load Cr(Kn)	额定静负荷 Rate static load Cor(Kn)	重量 Weight(Kg)
1	33108	3007708E	40	75	26	20.5	26	1.5	1.5	84.7	110.3	0.486
2	33109	3007709E	45	80	26	20.5	26	1.5	1.5	87.1	117.2	0.535
3	33110	3007710E	50	85	26	20	26	1.5	1.5	89.3	1241	0.572
4	33111	3007711E	55	95	30	23	30	1.5	1.5	114.5	1648	0.843
5	33112	3007712E	60	100	30	23	30	1.5	1.5	117.1	173.2	0.895
6	33113	3007713E	65	110	34	26.5	34	1.5	1.5	142.8	2204	1.3
7	33114	3007714E	70	120	37	29	37	2	1.5	172.1	267	1.7
8	33115	3007715E	75	125	37	29	37	2	1.5	176.1	2796	1.78
9	33116	3007716E	80	130	37	29	37	2	1.5	179.6	2923	1.87
10	33117	3007717E	85	140	41	32	41	2.5	2	215.7	354.2	2.43
11	33118	3007718E	90	150	45	35	45	2.5	2	252.1	414.7	3.13
12	33119	3007719E	95	160	49	38	49	2.5	2	298.9	498.2	3.94
13	33120	3007720E	100	165	52	40	52	2.5	2	309.4	529.2	4.31
14	33121	3007721E	105	175	56	44	56	2.5	2	351.8	607.8	5.29
15	33122	3007722E	110	180	56	43	56	2.5	2	373.2	639.1	5.5
16	33124	3007724E	120	200	62	48	62	2.5	2	448.2	779.1	7.68

Product features:

Product feature:Tapered roller bearings can bear radial an d axial joint loadl.It has inner and outer conicaraceway, in which taper rollers are arran ged. Al the projection lines of the con esueface are meeting at thesame point of bearings axis. Tapered roller bearings is usually a separated type bearings, that is, the innercomposents con sisting of inner cine, rolleys and cage and cup can be installed separately.

Application introduction:

Tapered roller bearings are widely used in au tomobiles, mill,minin g,metallurgyplastics machinery an d otherin dustries.

FACTORY APPEARANCE

Our factory is a professional manufacturer and seller of automobile bearings. Our leading products include automobile clutch release bearings, wheel hub bearings, tensioner bearings and air-conditioning compressor bearings.

Packaging and delivery

The factory is located in the Industrial Park of Panzhuang Town, Linqing City, Shandong Province, with extremely convenient transportation and logistics.

APPLICATION AREAS

CUSTOMER VISIT

FAQ

Q: What are your payment terms?

A: Payment <= 1000 USD, 100% USD in advance. Payment > = $1000, 30% T/T in advance, balance before delivery.

Q: Do you provide samples? Is it free or extra?

A: Yes, we can provide samples free of charge, but we don't pay for shipping.

Q: What is your lead time?

A: If the goods are in stock, it is usually 5-10 days. Or, if the goods are not in stock, then 15-20 days, it is based on quantity.

Q: Are you a trading company or a manufacturer?

A: We are a factory!
